GD-610B Insulator Faults Detector

GD-610B Insulator Faults Detector

Brief Description:

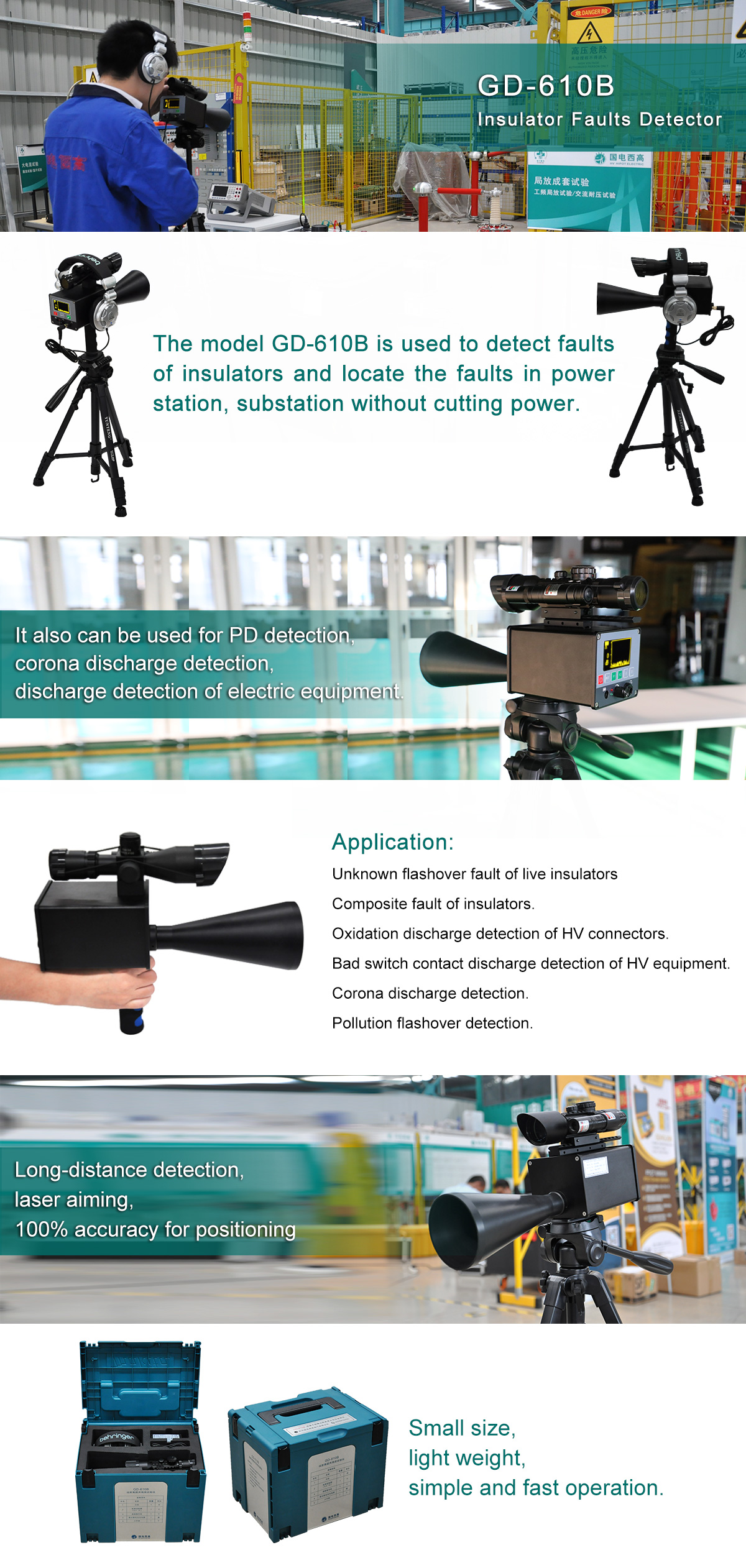

The model GD-610B is used to detect faults of insulators and locate the faults in power station, substation without cutting power. It also can be used for PD detection, corona discharge detection, discharge detection of electric equipment.








Product Detail

Product Tags

GD-610B Insulator Faults Detector
Features

Small size, light weight, novel and beautiful structure, full function, simple and fast operation, safe and reliable.
For low or zero value insulators can automatically alarm. It is able to detect the insulator with leakage, but has not yet broken down at critical damage.
Long-distance detection, laser aiming, accurate positioning of the deteriorated insulator and the specific location of its equipment failure, the accuracy rate is 100%.
Dual indication of stereo headphone and LCD display, the effect is obvious.
Strong anti-interference ability.
High degree of intelligence:
With data locking function.
Under-voltage function(If low voltage, the instrument will shut off automatically).
Constant current charging, auto stops by itself after full charge.
Lithium-ion battery with 1000 charging times, equipped with intelligent charging system to extend battery life.

Specifications

Use range: 6kV~500kV

Host Center frequency 40KHz±2Hz
Sensitivity Discharge mode: pinpoint arc discharge
Discharge interval: 4mm
Voltage:
AC 10kV         distance 18M
AC 35kV         distance 25M
AC 110kV        distance 50M
AC 220-500kV    distance 50M
Operating voltage 7.4V (lithium-ion batteries*2pcs)
Dimension 250*125*140mm
Aluminum alloy bracket

Laser Output wave length: 650nm
Beam divergence: 0.4mard
Output power: ≤ 50mw
Dimension: 16*0mm
High frequency sensor Center frequency (fo): 40kHz±2Hz
Center capacitance (Co): 2500±20%pF
Working temperature: -20-60
Weight: 2.17kg
Headphone

Rated impedance (Z) 125
Frequency range 100Hz-10KHz
Sensitivity (1W/1m) 60dB
Charger Input voltage AC 220V±10%
Input frequency 50Hz±5%
Output DC voltage DC 8.4V
Current 5A
Packing dimension of whole set: 470*340*420mm
Working temperature: -30-60; Humidity: (0~100)%RH
Complete packing weight: 7.18kg
Accessories
GD-610B detector 1 set
Power adapter 1 piece
High reduce noise headphone 1 piece
Laser battery charger 1 piece
Handle 1 piece
Engineering plastic packing box 1 copy
User’s manual 1 copy
QC pass certificate 1 copy
Packing list 1 copy
Factory test report 1 copy
